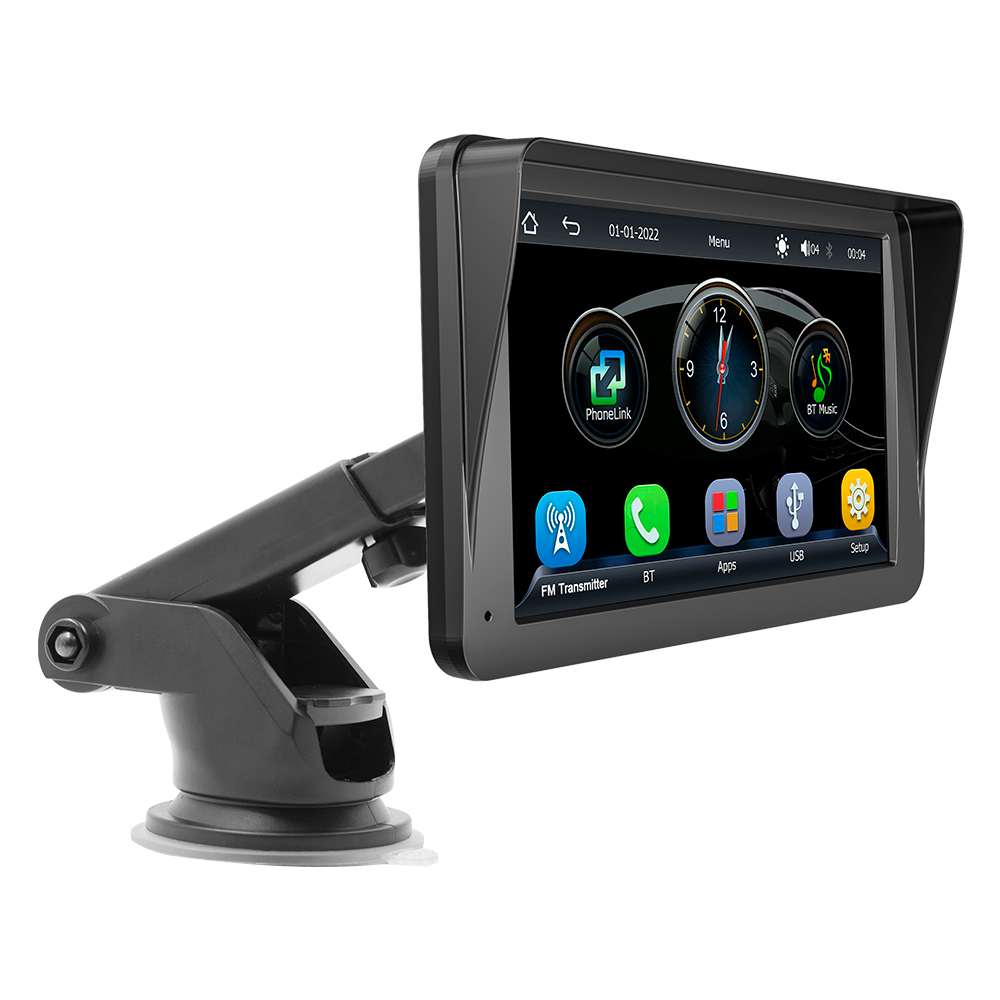

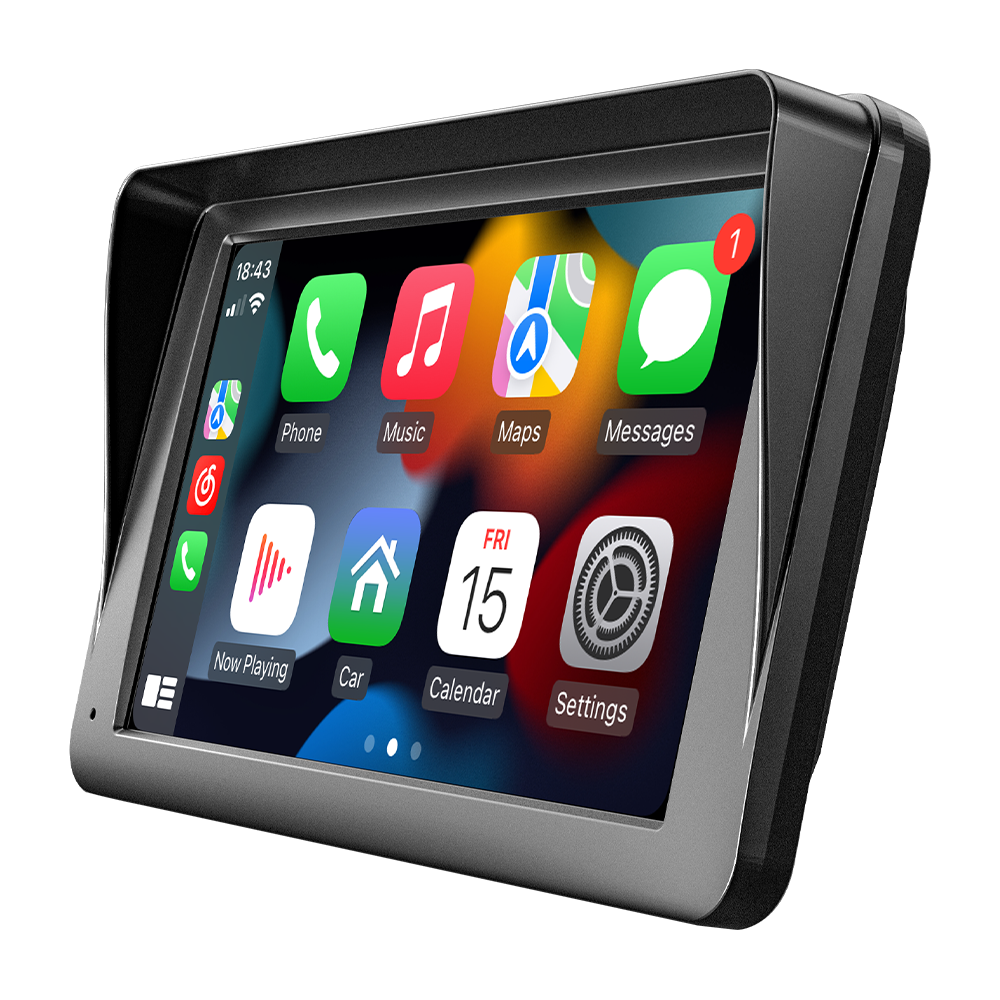

X5300 7 Inch Carplay Screen

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1. Basic Information

  • Model: X5300
  • Type: Portable Carplay MP5 (Sunshade Model)
  • Operating System: Allwinner Melis System
  • CPU: F133

2. Wireless and Power Parameters

  • Radio Frequency: 88.60-95.70 MHz
  • Bluetooth: 5.0 (Default Name: CarPlay)
  • Wi-Fi Frequency: Dual-band 2.4G/5G
  • Input Voltage: 12-36V
  • Output Power: Built-in 1W speaker

3. Performance Parameters

  • RAM: 1Gbit DRAM
  • ROM: None
  • Display Resolution: 1024x600
  • Screen Size: 7 inches HD
  • Operating Temperature: -10°C to 60°C

4. Size Parameters

  • Installation Size: 65x65MM
  • Shell Size: 190x110MM
  • Depth: 22MM
  • Gift Box Size: 215x135x95mm
  • Carton Size: 485x445x290mm
  • Number of Units per Box: 20 pcs

5. Weight Parameters

  • Weight per Unit: 0.73KG
  • Net Weight per Carton: 14.60KG
  • Gross Weight per Carton: 15.45KG

6. Function Parameters

  • Mobile Internet: Supported
  • Locate Vehicle: Not supported
  • Screen Rotation: Not supported
  • Reverse Image: Supported
  • Video Playback Warning: Supported
  • Steering Wheel Controls: Not supported
  • Video Output: Not supported
  • Offline Map: Not supported
  • Dash Cam: Not supported
  • Built-in Speaker: Supported
  • GPS Navigation: Not supported
  • USB Interface: USB 2.0
  • TF Card Support: Supported
  • Reset Button: Not supported

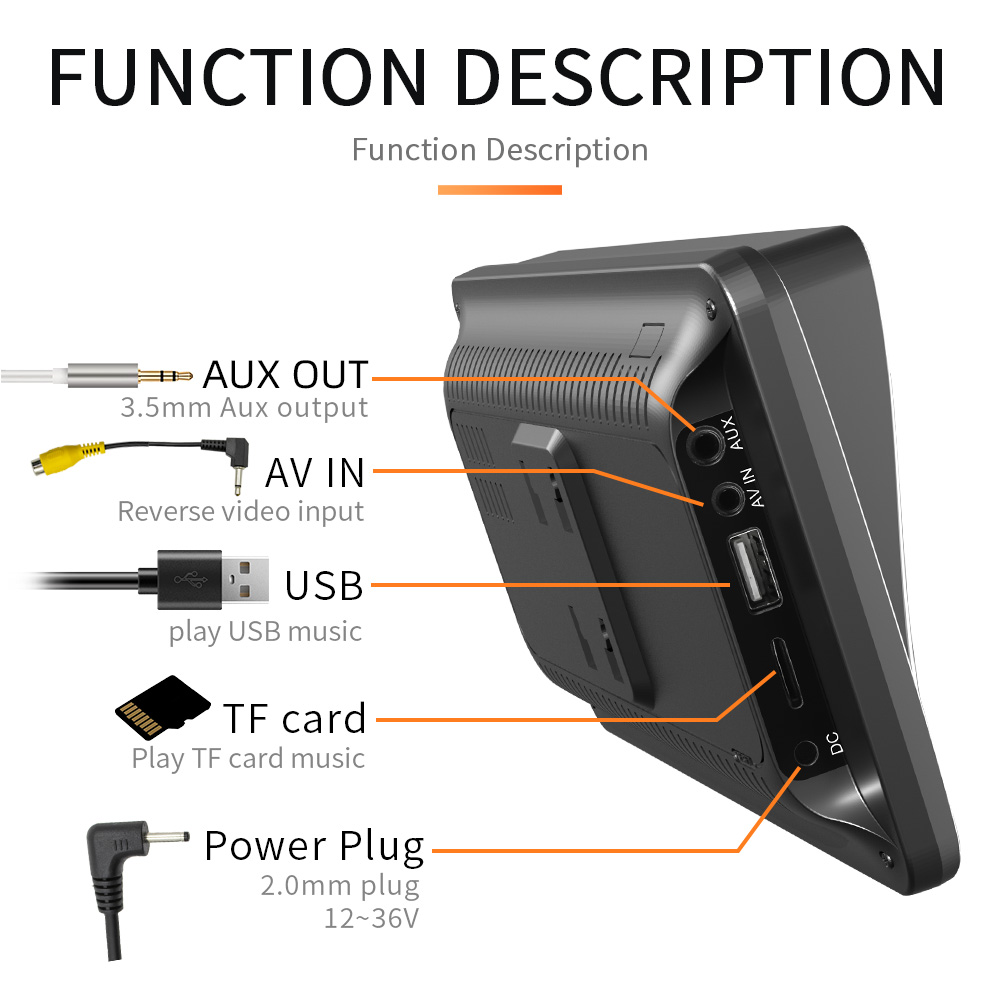

7. AUX Port Parameters

  • Audio Output: Supported
  • Video Output: Not supported
  • Audio Input: Not supported
  • Video Input: Not supported
  • Reversing Video Input: Supported

8. Format Parameters

  • Audio Formats: MP3/AAC/APE/OGG/M4A/RA/WAV
  • Video Formats: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
  • Image Formats: JPEG/PNG/BMP/GIF/TIFF

9. Language Parameters

Supported Languages: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese

10. Other Parameters

  • Factory Set Password: 113266

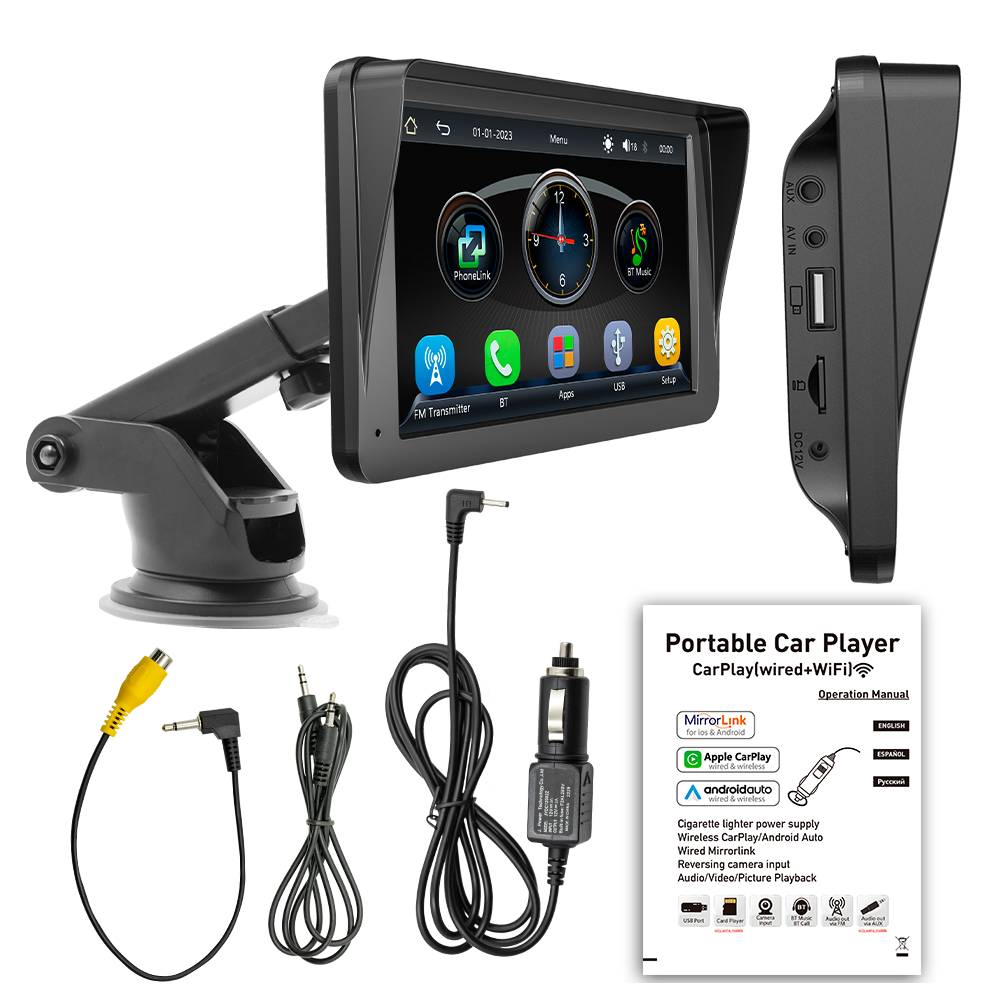

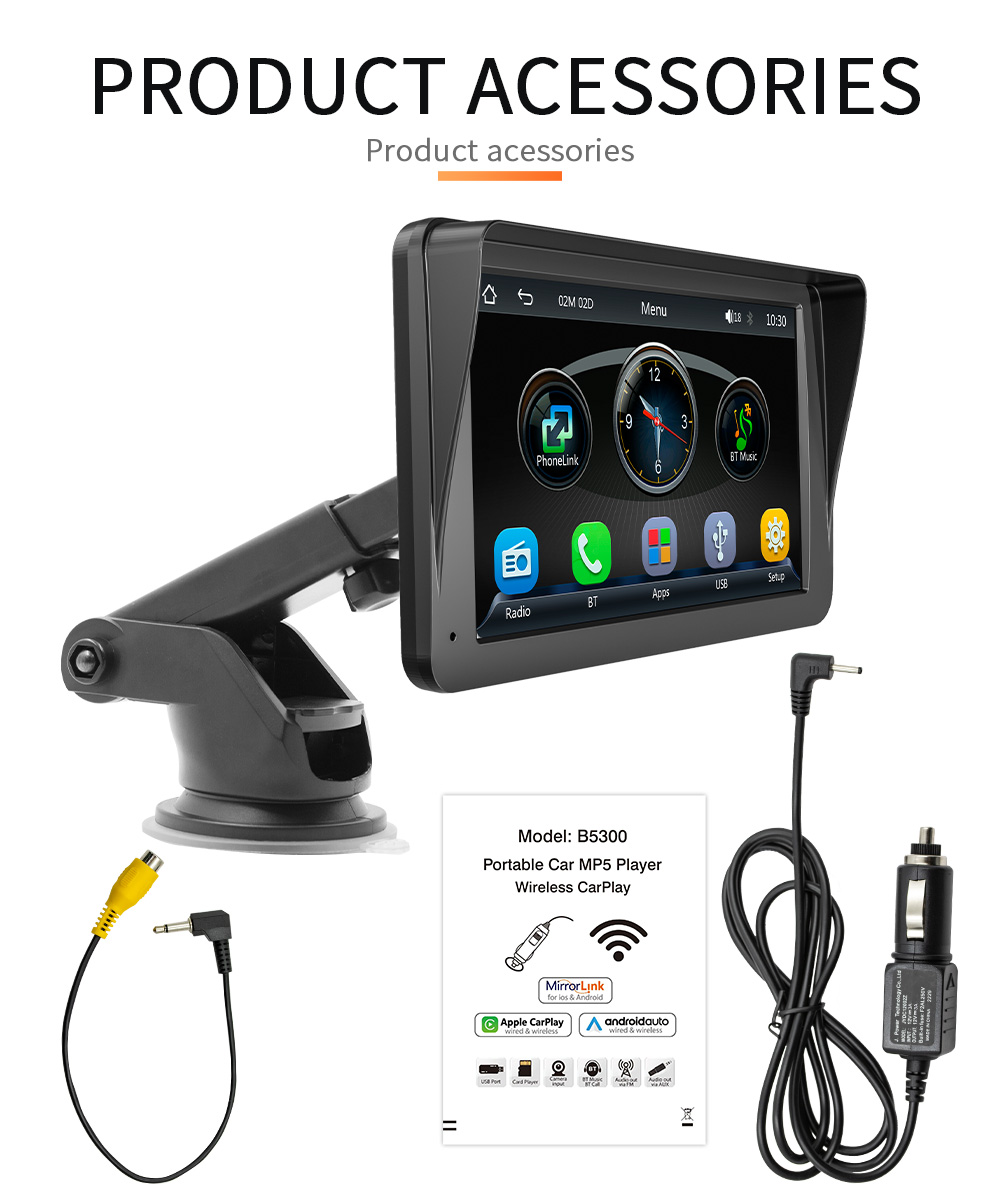

11. Accessories

  1. Host
  2. Manual
  3. Cigarette Lighter Power Cord

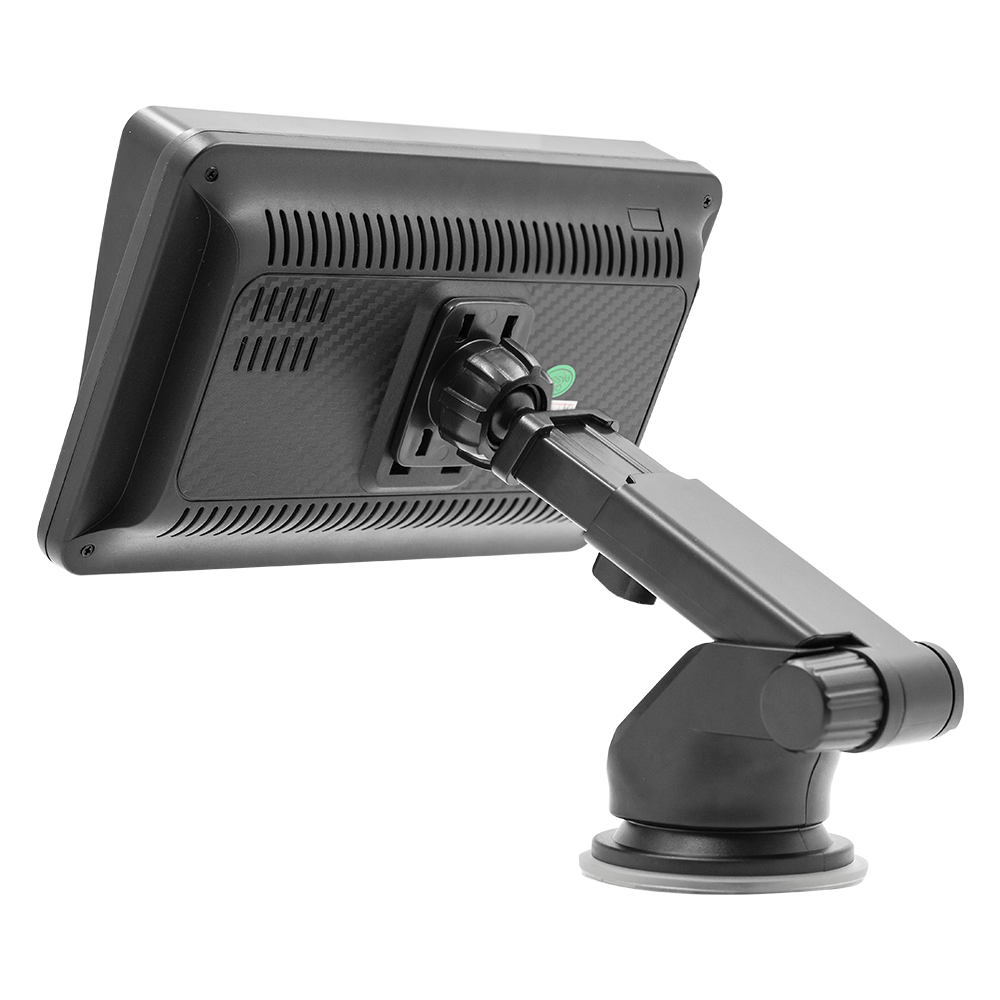

  4. Suction Cup Bracket
  5. Reversing Video Cable

12. Basic Functions

  1. Radio frequency transmitting function
  2. SD card and USB flash drive (audio/video/pictures)
  3. Bluetooth function
  4. Wired mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay

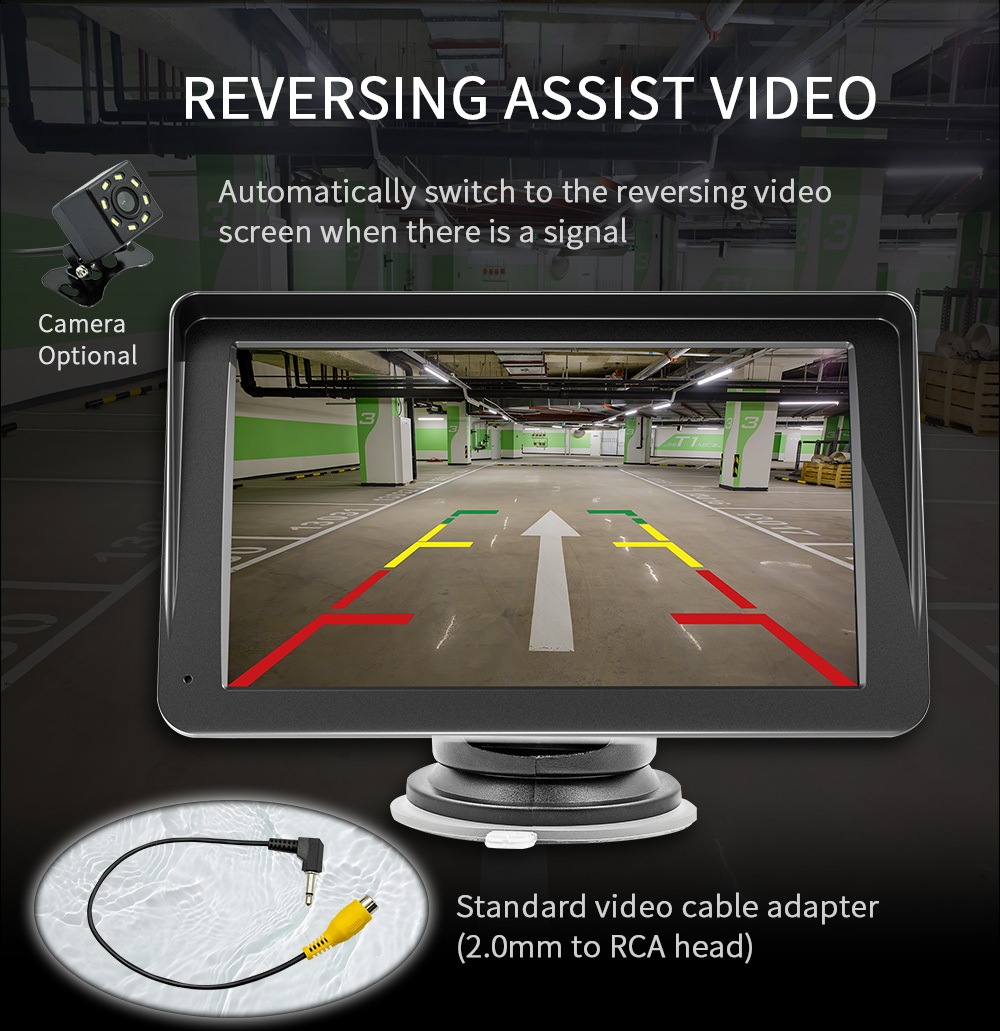

  5. Rear view function (camera optional)
  • X5300

  • Kowan

Feaure:
Availability:
Quantity:

FAQ

  • Does Xlintek is factory?

    Yes,we have15 years+ professional experience with dashcamand carplayer Self-own Factory with 5 professional production lines.
  • What is the Warranty for Xlintek products?

    All products have 2 years warranty. lf there is no man-madeproblem,we will replace or repair for you.
  • Can you provide OEM/ODM service?

    Yes ,we have more than 15 years OEM/ODM service.
  • What's the delivery time?

    Normally under 100pcs we ship in 1-3 business day.
    200+pcs we will send the goods within 3-7 business days.
